The UV-LED curing system adopts the LED lighting method, and the LED with different wavelength of 365nm, 385nm, 395nm and 405nm wavelength can be used to cure different materials,such as UV glue, UV ink, UV varnish, UV paint.

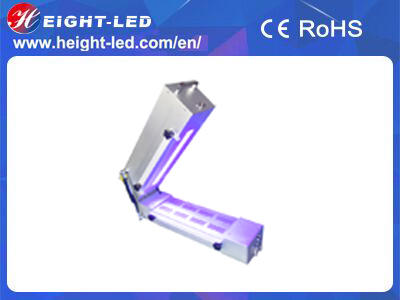

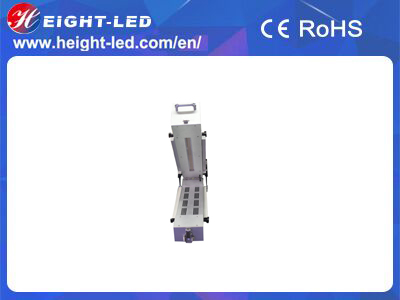

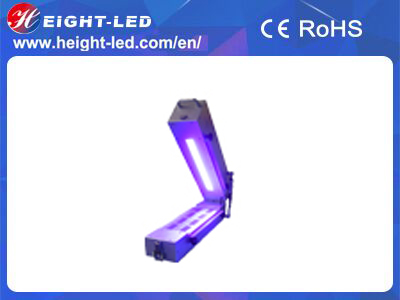

XYUV-4II-SN26020-NH is a high-performance designed UV LED Curing system for UV LED ink. It mainly includes controller, UV LED head and water chiller. UV LED head adopts imported high-intensity UV LED integrated, UV spectrum wavelength is 395nm, using water cooling, effective curing area is 260X20mm,supports external signal input and trigger, It can carry semi-automatic and fully automatic production line use.

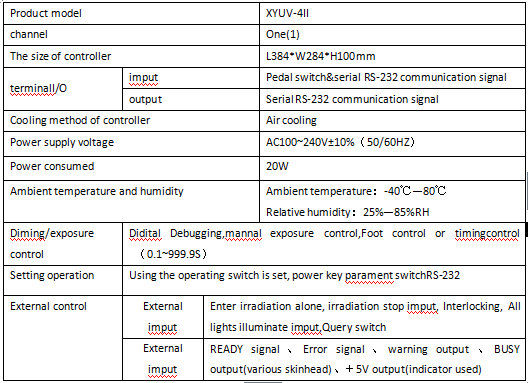

Technical data of controller:
Technical data of uv led light:
Wavelength
Electric Power
Optic Power
Curing area
Cooling method
365nm
768W
7000mW/cm2
260x20mm
Water cooling
395nm
14000mW/cm2
